Ball Valves

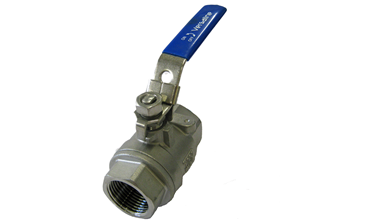

2 Piece Ball Valve

Versaline 2 Piece Ball Valve

Stainless steel construction, removable end to access the internal PTFE seal.

Applications:

Abrasive Products (the valve components can withstand passage of abrasive medium)

Operating conditions:

Pressure rating 1000Psi (Wog). Replaceable PTFE seal (230C Max)

Ordering Information:

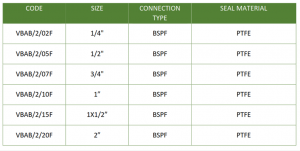

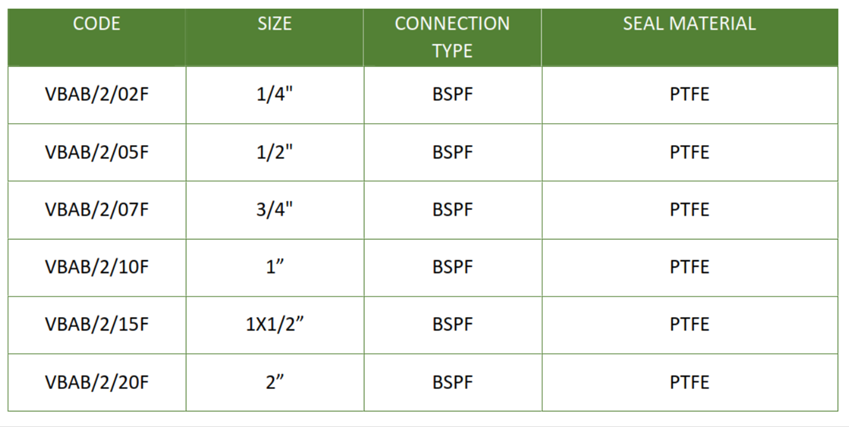

The part numbers of each available size are listed in the chart below.

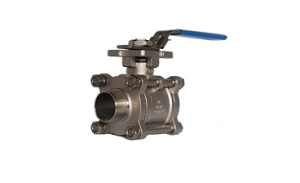

3 Piece Ball Valve

Buy now

Versaline 3 Piece Ball Valve

Applications:

For Food and Dairy

Where there is a requirement for sanitary on/off full-bore valve. Abrasive products (the valve components can withstand passage of abrasive medium)

Operating conditions:

Pressure rating 1000 Psi (1000 WOG). PTFE seal (230C Max). Piggable

Ordering Information:

These valves can be supplied with a variety of pipe connection types. The connection components can also be supplied separately for the user to weld on. The common pipe connection types we stock are RJT, IDF, DIN, SMS, SMS Aseptic, and Clamp. Please ask at the time of ordering.  Also availa150) ble in Tri- Clamp ends, Flanged ends (PN16, ASA150)

These valves are Sanitary, not hygienic, or suitable for CIP.

Download Datasheet here:

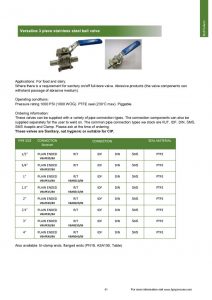

thumbnail of 3 Piece Ball Valve Datasheet

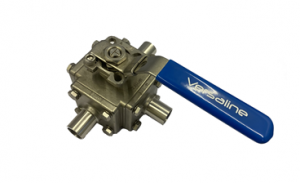

3 Way Ball Valve

3 Way Ball Valve

Applications:

Food and Dairy

The Versaline 3 Way Ball Valve is suitable for use where there is a requirement for a sanitary full bore valve. Abrasive products (the valve components can withstand the passage of abrasive medium).

Operating conditions

1000 WOG

PTFE Seal (230C Max)

Piggable (except the centre branch)

Required air pressure for actuator is 4-7 Bar

Ordering Information:

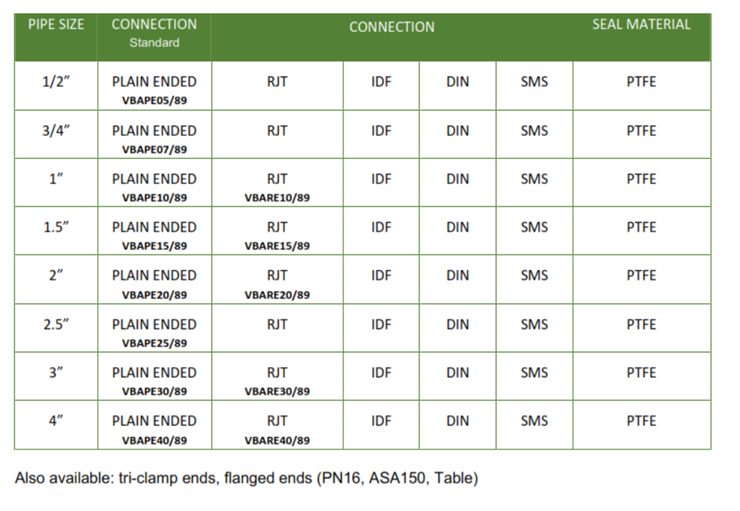

The part numbers for each available size are listed in the chart below. These valves can be supplied with a variety of pipe connection types.  The connection components can also be supplied separately for the user to weld on. The common pipe connection types we stock are RJT, IDF, DIN, SMS, SMS Aseptic and Clamp.

These valves are Sanitary, not Hygienic or suitable for CIP.

For a fully hygienic 3-way ball valve please enquire about our EHEDG 3 Way Shutter Valve.

Datasheet:

thumbnail of 3 way ball valve datasheet
