Rotary Lobe Pumps

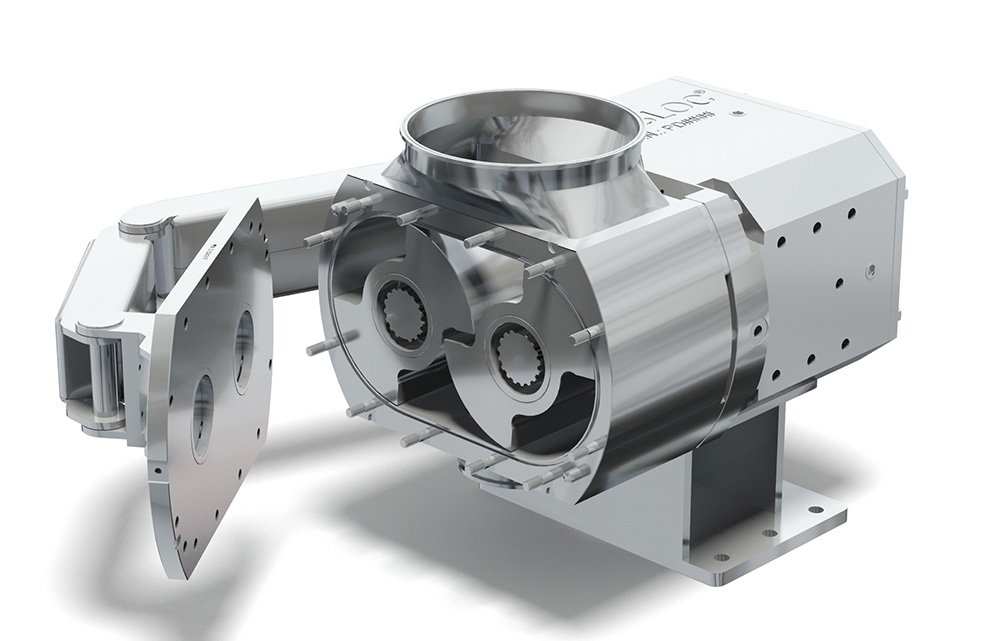

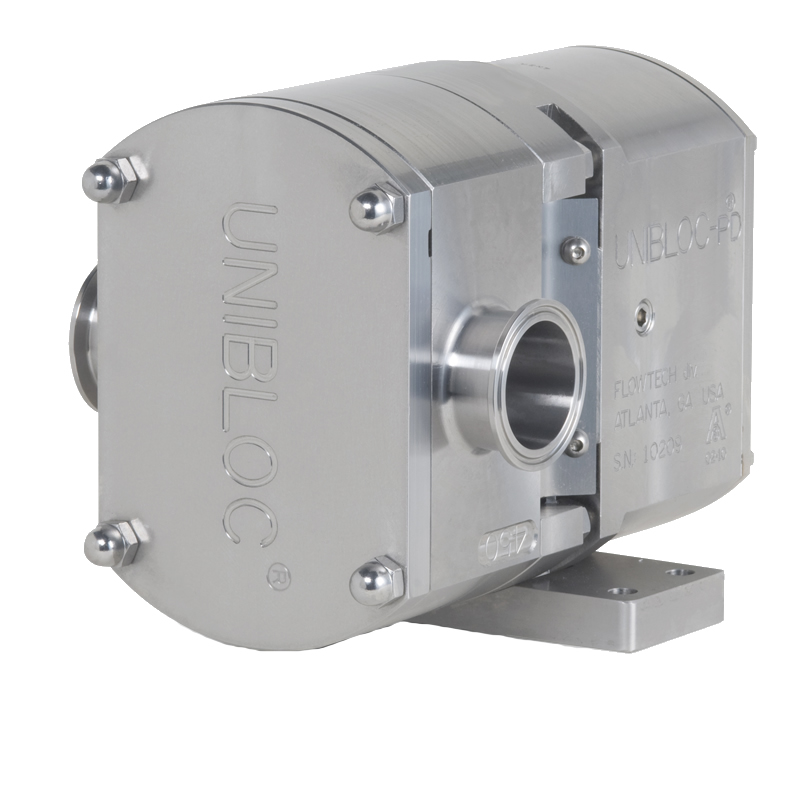

Unibloc rotary lobe pump

This high performance, positive displacement pump is a bit of a smooth operator. With its signature smooth and quiet operation, its optimal efficiency rotors push the products through from one end of the pump to the other and when the pressure gets too much, the seriously oversized shafts help to prevent the damage that other lesser pumps suffer.

The Rotary Lobe pump is used in breweries (yeast), the dairy industry (cream, yogurt, cottage cheese), confectionary (caramel, toffee, fondant cream), in the soft drinks industry for the likes of syrup and concentrates, in the pharmaceutical industry on creams & ointments, in household & personal care for washing liquids, toothpaste, deodorants, shampoo & soap.

Unibloc is available in a number of specialised variants –

  • Meat Pumps transfer raw meat and is fitted with special rotors allowing quick and easy replacement.
  • Road tanker Pump – lightest in class and available with either bare-shaft or Hydraulic motor
  • Chocolate pumps – heated rotor case and front cover, these pumps have tried and tested shaft seals for this difficult product
  • Fryer Pumps – designed to move hot oil from fryers, this version features hard faced seals with Kalrez O rings, special bearings and clearances

The Unibloc rotary lobe pump head has been cited as the cleanest in the industry with its seamless design and porosity free guarantee as standard features on Unibloc.

Other features are as follows:

  • The rotors can be supplied in non-galling alloy where pressure spikes might cause a lesser pump to seize, or in plastic which is cost-effective option for the meat processing industry where bits of bone cause frequent chaos
  • Oversized shafts which resist pressure are the backbone to the pump’s performance
  • The pump head interior and front cover have no pockets or crevices for products to become trapped, resulting in a fully CIP/SIP able design
  • Unibloc offer a wider range of shaft sealing options than ANY other lobe pump manufacturer
  • For the pharmaceutical industry the pumps are available in a range of alloys, such as duplex or hastelloy and on much shorter delivery times than others
  • The gearbox is the toughest precision built in the industry in aircraft grade aluminium alloy or stainless steel
  • The Unibloc is available in a “Compac” design that bolts directly to a motor or gearbox flange reducing time spent in aligning different components on a baseplate
  • Safe design with no accessible moving parts
  • Our “Labtop” variants are a self contained laboratory pump that can be used in R&D facilities to test production techniques & processes. Full scale plant can use the larger Unibloc model without the need to re-validate processes.

It is no surprise that the world’s largest food machinery OEM companies use Unibloc pumps on their machines.

Nakakin circumferential piston pump

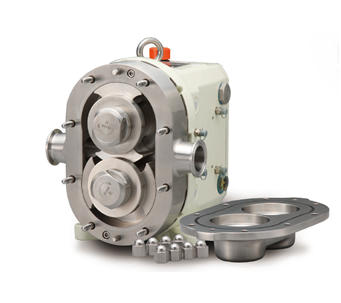

Versaline Rotary Lobe Pump

Supported by high quality and high performance each of Nakakins four pump types is unique. The wide range of approaches to sealing includes using inside and outside mechanical seals to meet individual applications. They are easy to clean, easy to dismantle and easy to reassemble.

To view the complete range click here

HpE Unibloc Compac

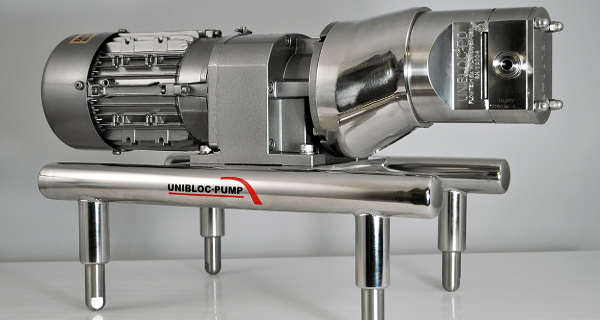

Unibloc rotary lobe pump

The CompacTM series of coupled pump solutions. From the unique and straigh-forward design of the Compact Direct, to the unmatched versatility if the Compac Flex, the Compac series offers a complete line of sanitary lobe and gear pumps for a wide range of industries and applications.

  • Compac design
  • Horizontal or Vertical mounting versatility
  • Eliminates pump & motor alignment issues
  • Safe design with no accessible moving parts

Compac Direct

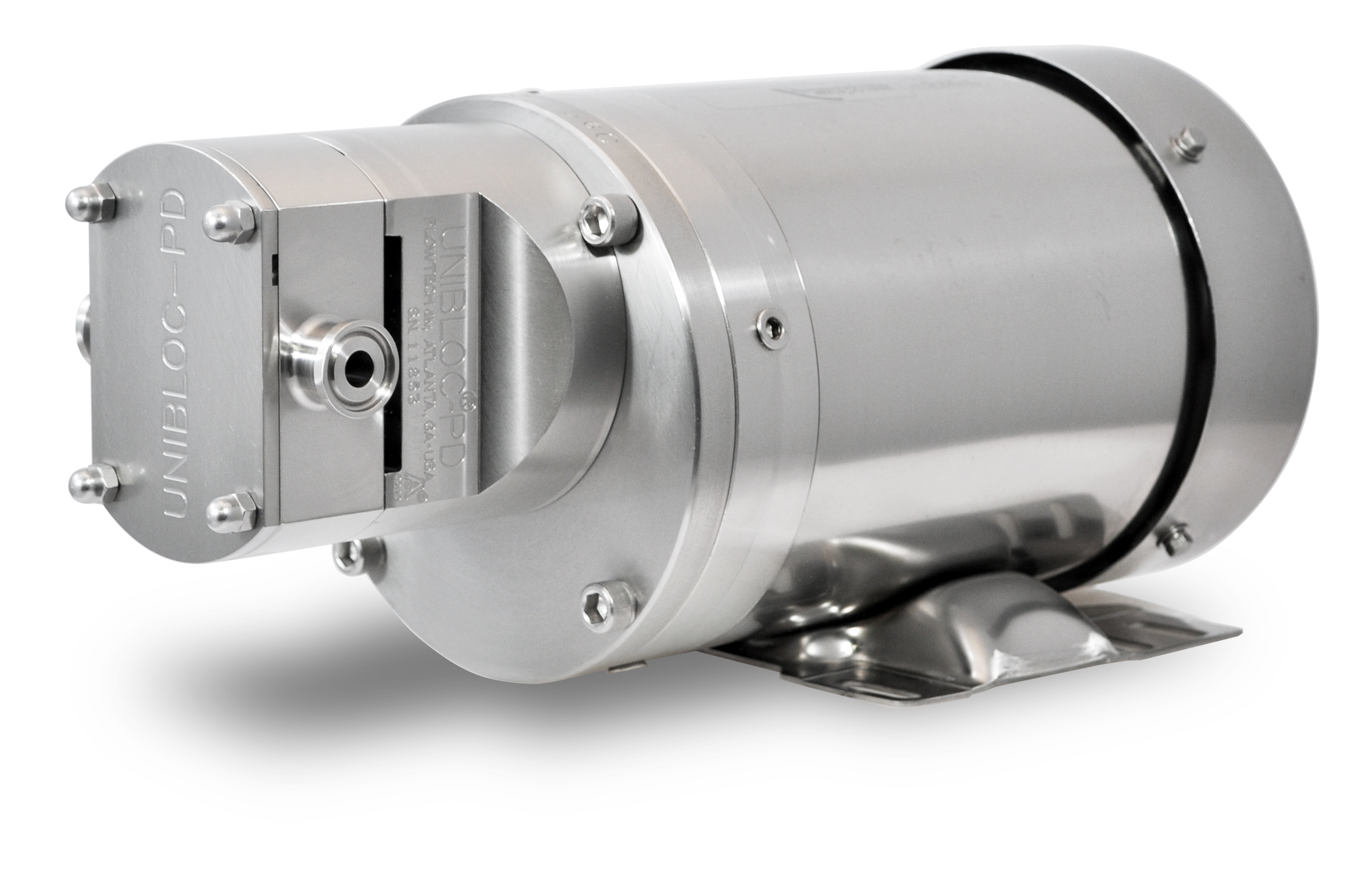

Unibloc compac direct

The Compac series feature Unibloc Pumps. Renowned for their dependability and uncomprised sanitary design. Unibloc pumps excel in food, beverage, pharmaceautical, dairy, chemical and cosmetic industries.

Unibloc

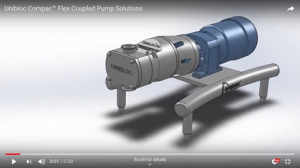

Unibloc coupled solutions

The Compac eliminates misalignment issues:

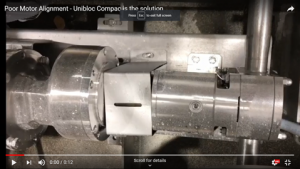

Poor motor alignment

HpE Unibloc Labtop Pump

Unibloc Labtop Pump

The “plug and go” design of the Labtop has made it the top-selling complete pumping solution for years in the biotechnology and pharmaceutical industries. The simple and versatile design consists of a pump, motor, and controller enclosed in a stainless steel case. It is used for small to medium-sized capacity applications.

So what else is good about the Labtop?

  • It handles shear, sensitive products very well
  • It is lightweight and compact
  • It can run dry for a short period of time
  • There are no rubber hoses with potential to rupture
  • No shredding of rubber from inside hose
  • Operates equally well in both directions
  • At its heart, the Unibloc rotary lobe pump is manufactured from the highest quality stainless steel material
  • Easier maintenance
  • Good product for laboratory and R&D – the same pump type can be used in R&D then scaled up for full production without the need to re-validate the process
