Sampling Valves

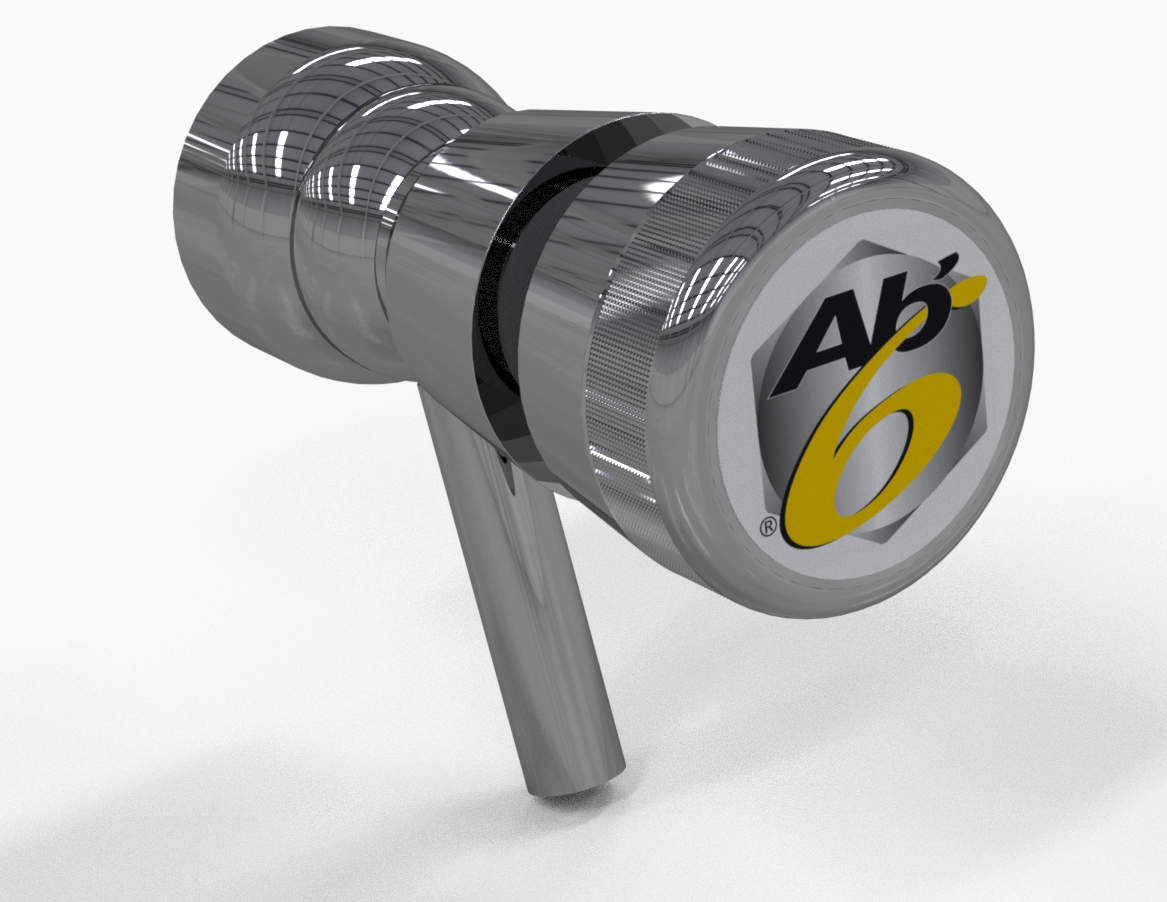

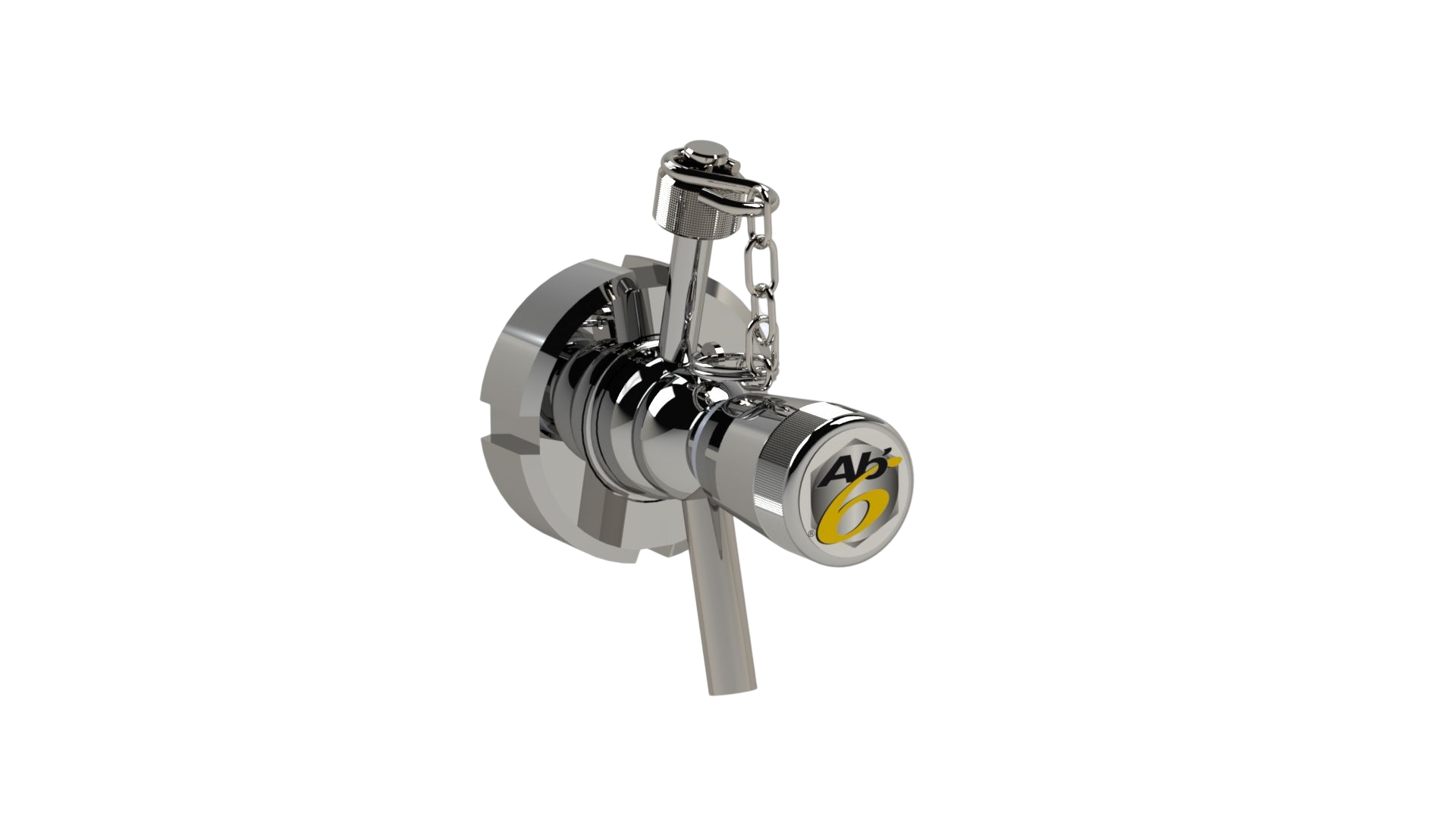

Membrane Sampling Valve

Available in several versions, our membrane sampling valves cover all your requirements. They guarantee you secure samplings representative of your production. In adherence to “good manufacturing practice” their components are followed up and traced.

Technical Characteristics

  • Clear or viscous liquids or liquids with low solids charge
  • DN06, 10 and 15

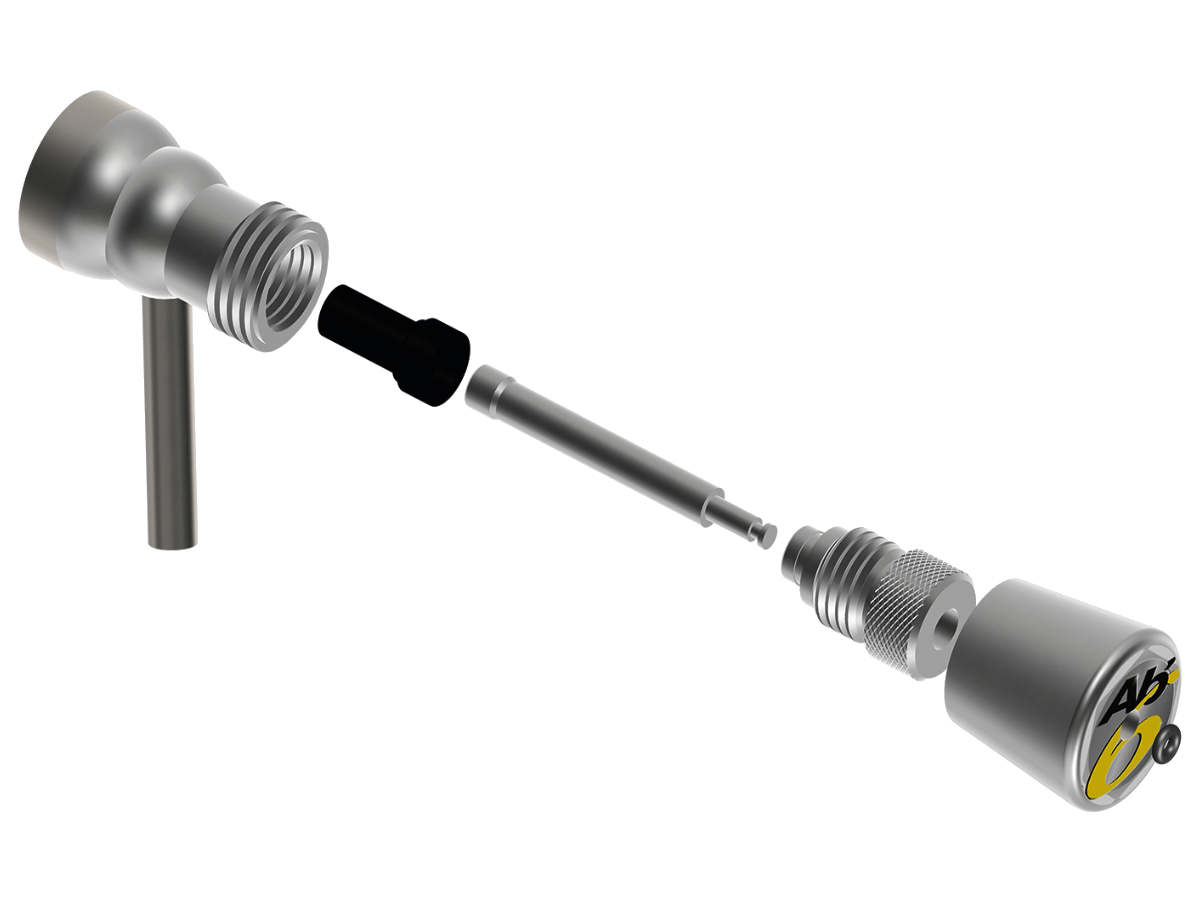

  • Elastomer or PTFE membrane
  • Standard operating pressure 10 Bars
  • Max temperature <200◦C

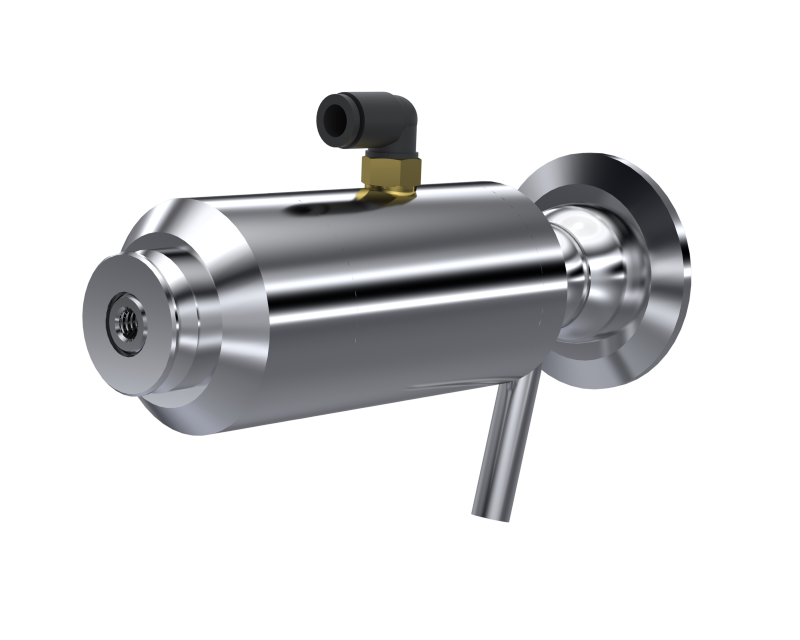

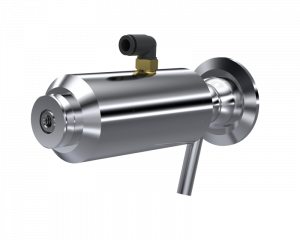

  • Manual or motor-driven construction


  • Pharmaceuticals
  • Cosmetics
  • Cleaning Products
  • Wines & Spirits
  • Soft Drinks
  • Dairy
  • Oils & Sauces
  • Paints & Inks

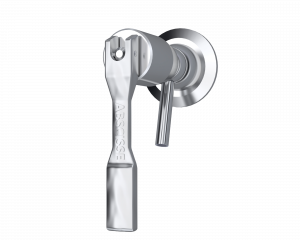

Manual Lever Control

New to our sampling range: simplifying and securing sampling while ensuring accuracy.

Thanks to its intuitive manual lever control, operators will be able to take samples easily and effortlessly. The spring-loaded lever closes automatically as soon as pressure is released, adding an extra level of safety when taking samples and avoiding any risk of accidental spillage, protecting your operators and the environment.

Compact and easy to install, it adapts to our existing sampling solutions with membranes by simply replacing the control knob, without requiring any other modification or interrupting production.

All stainless steel, our manual lever control is designed to withstand a wide range of industrial environments and guarantee reliable long-term performance.

Technical Characteristics

  • Clear, viscous or slightly contaminated liquids
  • DN06 and DN10
  • All Stainless steel
  • Maximum working pressure: 6Bar


  • Pharmaceuticals and Cosmetics
  • Cleaning products
  • Wines and Spirits
  • Non Alcoholic Soft Drinks
  • Dairy Products
  • Oils & Sauces

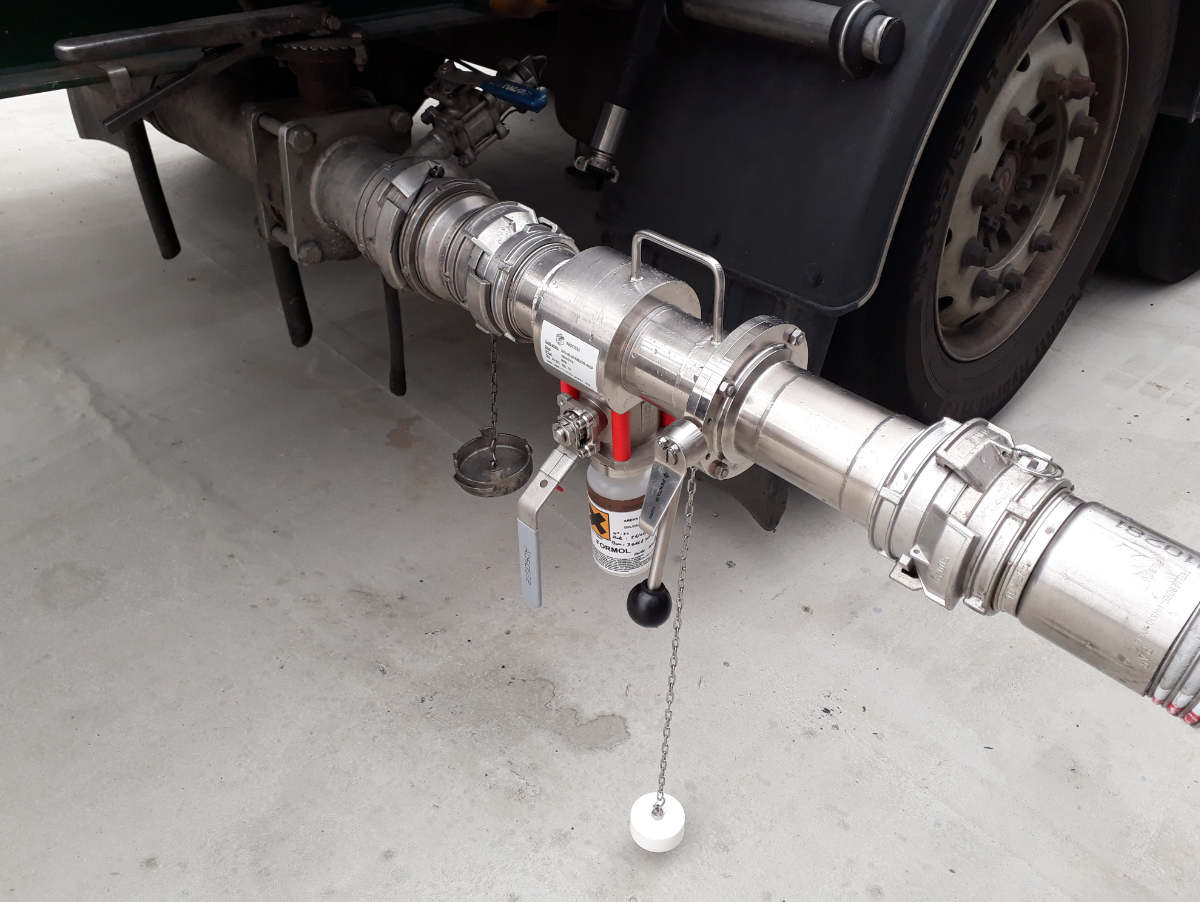

Capacitive Sampling Valve

In order to guarantee product traceability and quality, we have developed a complete range of capacitive ball valves that meet the requirements of the chemical, petrochemical, cosmetics, sugar refining, nuclear and asphalt industries.

Front-flush assembly as near as possible to the sampling zone eliminates retention zones.

This valve, turning 180°, guarantees the operator’s safety.

Constantly monitoring industries’ evolution, we develop and innovate in order to best meet their changing requirements.

Technical Characteristics

  • Clear or viscous liquids or liquids with low solids charge
  • DN15 to 150 on horizontal or vertical pipework
  • Sampling volume 15,30,50 or 100cc
  • Connector SW, BW, flanges, PN16, PN20 and PN40
  • Steel construction, 316L, 304L, Uranus B6, Alloy C2000, Sampling outlet for bottles according to customer standards [DIN28 to 52, GL45…]
  • Manual or motor-driven construction
  • Product outlet shut-off valve
  • Bottle shut-off valve
  • Thermal jacket for solidifying liquids
  • Glove box incorporated for hazardous fluids
  • Isothermal bottle holder for hot fluids
  • Limiter of the number of operations for sampling volumes in excess of  the volume of the sphere


  • Wines & Spirits
  • Chocolate
  • Oils & Sauces
  • Corrosive and / or explosive fluids
  • Paints & Inks
