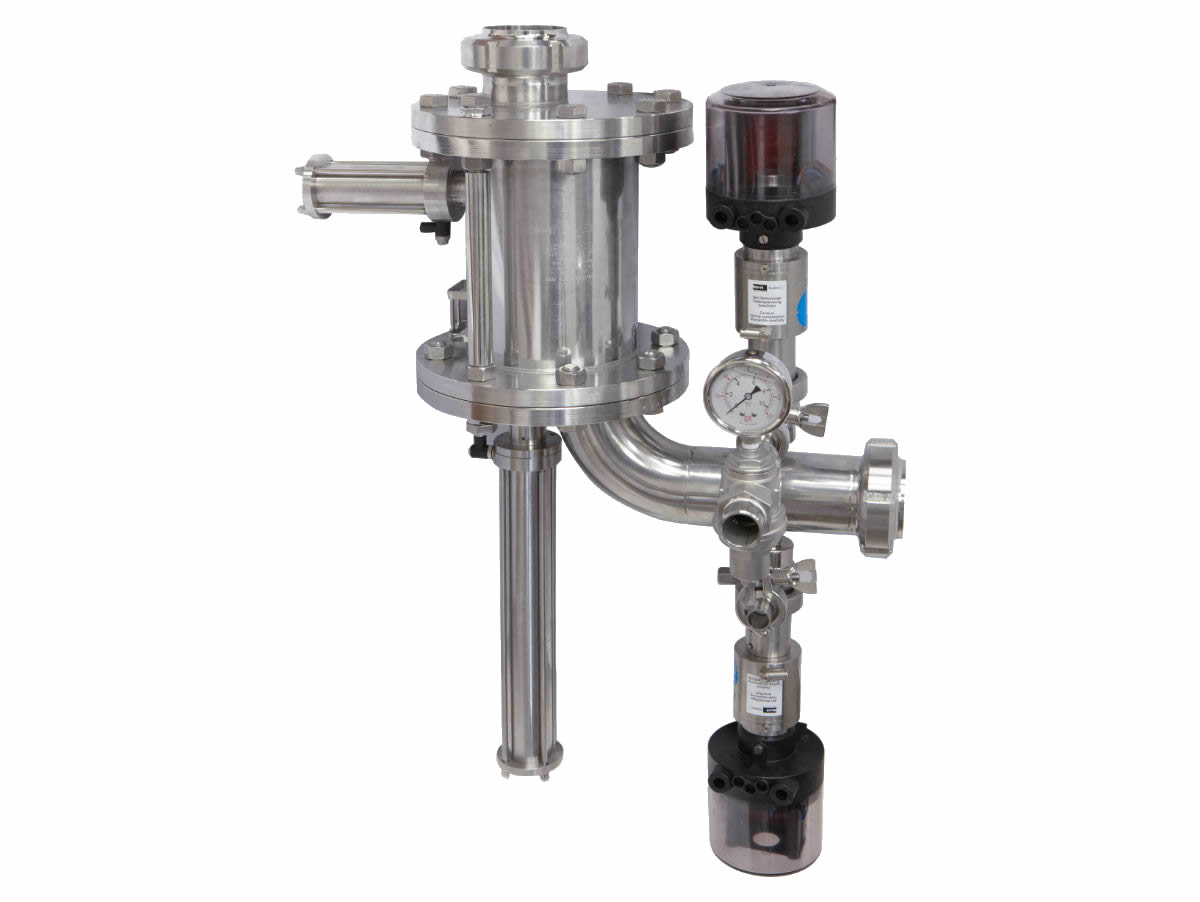

Aseptic Pigging Systems

This construction is suitable for recovery of sensitive fluids requiring bacteriologic cleaning between 2 production runs. It enables on-line sterilizing operations. The Aseptic pigging design meets standards ISO14159 and EN1672-2 (bend radius, thermal compressions, and expansions), optimizing the sterilization and the draining.

Low energy requirements
Low maintenance and operating cost
Rapid return on investment
Big reduction of effluent volumes
Reduction of the cleaning cycle times
Hygienic Construction, SIP
Sterile barrier or continuous cleaning of actuator rods

Technical Characteristics:

Clear or viscous liquids with markers
DN25 to DN150
For SMS, BSOD, DIN11850, ISO pipework
Standard operating pressure: 10 bars
Operating pressure can be up to 20 bars

Suitable for the following industries:

Pharmaceuticals & Cosmetics
Cleaning products
Soft Drink
Dairy products
Oils & Sauces

We work closely with our manufacturer Abscisse to ensure we supply the highest quality equipment. Pigging Systems are designed to save on water consumption, as well as shortening the duration of the cleaning process. We offer a variety range of pigging systems clean-in-place pigging, T-Port Pigging Station and 3 Way Valve Pigging. This allows for flexibility on price and application from a simple manually operated to a fully automatic with PLC control.
