We are pleased to notify you of a new product for hygienic applications:
The WANGEN HYLINE. The progressing cavity pump provides customers in the food, cosmetics and pharmaceutical industries with the optimal dosing and conveying solution.  The HYLINE replaces the KB 20 range and supports the conveying capacities under the WANGEN Twin.

Features and Characteristics
The HYLINE is designed to ensure optimal performance and operational reliability.
The hygienic-related design of the Wangen HYLINE was implemented according to the strict GMP (Good Manufacturing Practice) Directives, which are assuming an increasingly important role in the food, pharmaceutical and cosmetics sectors. For this purpose, as is usual with WANGEN, special value is placed on quality – and this means on lifetime duration.

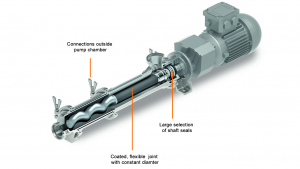

Hygienic Highlight: The flexible and maintenance free joint is coated with elastomer.  A constant shaft diameter construction design prevents sedimentation of the media to be pumped.

In order to enable the conveyance of a wide spectrum of media, a large selection of single-acting and double-acting shaft seals are available for the HYLINE, such as the encapsulated seals, single acting seal with elastomer bellows or gland packing.

The intelligent design of this hygienic pump requires no additional seals in the product chamber. Pump disassembly is easily carried out by removing all pump component connections outside the product chamber.

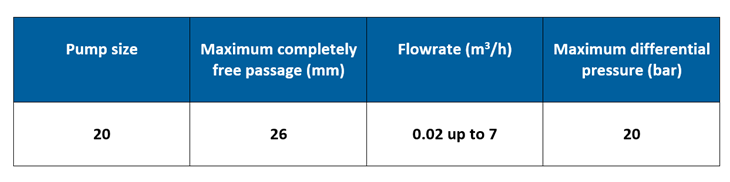

Technical Data

Characteristics
• Designed according to the strict directives of EHEDG, 3A and GMP
• Low dead space design for optimal cleaning capability
• Temperature -30 °C – 140 °C
• Viscosity up to 100.000 mPa·s

Conveying Media
•Dairy products, such as butter; margarine, milk, yogurt, processed cheese
• Drinks, such as fruit juice, beer
• Confectionery, such as chocolate, liquid sugar, marzipan, waffle mass, fondant mass or glazes
• Mustard, ketchup, mayonnaise, soy sauce or tomato pureé
• Pastes
• Honey, caramel or gelatine
• Ice cream, jam
• Pet food
• Cosmetics, such as shampoo, face cream or soap
• Pharmaceutical products

For more information on this product please contact our sales team on +44 (0)113 252 6712 or email sales@hpeprocess.com
